Assembly of the optical tube

Truss tube

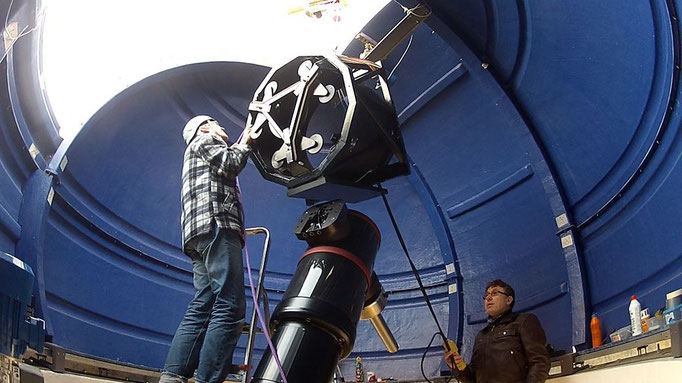

The overhead crane lifts the primary mirror cage in place.

Primary mirror cage
The assembly of the optical tube is progressing well.



The primary mirror cage is the most massive part of the optical tube assembly. It is a truss-tube made of powder lacquered square bar steel. To minimize the mass during assembly, the focus tube, back plate and primary baffle tube were removed.
